No. DESCRIPTION SPEC UNIT Q'TY VENDER
A B WIRE-BLACK UL1061AWG28 mm 595 UL,CSA APPROVAL
1 1 RED UL1061AWG28 mm 595 UL,CSA APPROVAL
2 2 RED UL1061AWG28 mm 595 UL,CSA APPROVAL
3 3 RED UL1061AWG28 mm 595 UL,CSA APPROVAL
4 4 RED UL1061AWG28 mm 595 UL,CSA APPROVAL
5 5 RED UL1061AWG28 mm 595 UL,CSA APPROVAL
6 6 RED UL1061AWG28 mm 595 UL,CSA APPROVAL
7 7 RED UL1061AWG28 mm 595 UL,CSA APPROVAL
8 8 RED UL1061AWG28 mm 595 UL,CSA APPROVAL
9 9 RED UL1061AWG28 mm 595 UL,CSA APPROVAL
10 10 RED UL1061AWG28 mm 595 UL,CSA APPROVAL
11 HOUSING IL-S-10S-S2C2-S EA 2 GOLD STAR
12 CONTACT IL-S-10S-S-100000 EA 20 GOLD STAR
13 ACETATE TAPE 15mm×30mm EA 2 DAEIL
14 EXPANDO 1/4", POLYESTER mm 535 NATVAR COMPANY Bentley Harris
도면번호 NH930701-11-908

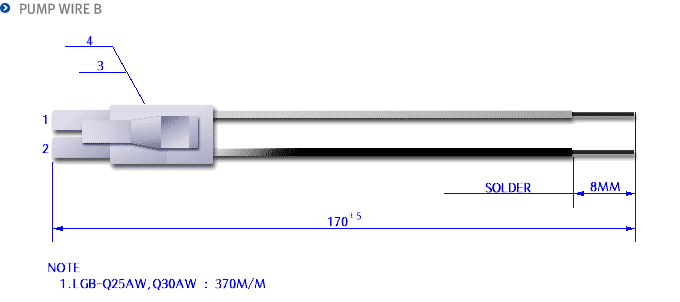

No. DESCRIPTION SPEC Q'TY VENDER
1 WIRE-WHITE UL 1015 AWG20 160 MM UL, CSA, APP'
2 WIRE-BLACK UL 1015 AWG20
3 HOUSING MG61008 1 EA KET
4 CONTACT ST730205-3 2 EA KET φ2 REC'
